Design Notes

  • Code………………………. ASME Sec IV HLW
  • Design Pressure………… 125 psi
  • Test Pressure……………. 125 psi
  • Interior…………………….. Ultonium Glass Lining
  • Exterior……………………. Primed Painted
  • Supports………………….. Saddles
  • Capacity………………….. 415 Gal./ 449 nominal
  • Weight……………………. 768 Lbs.

Material Specifications

  • Heads…………………… Carbon Steel
  • Shell…………………….. Carbon Steel
  • Couplings………………. Carbon Steel
  • Flanges…………………. N/A
  • Pipe……………………… N/A
  • Manway…………………. N/A

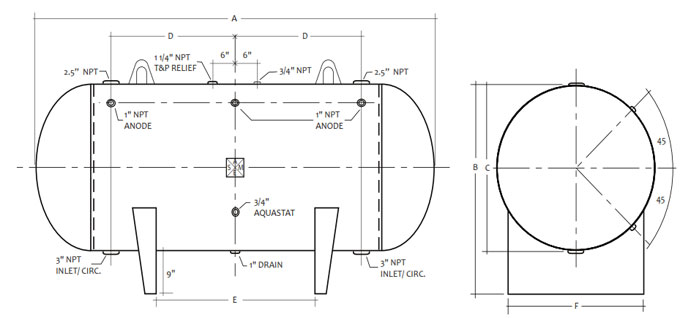

BH-36-102

Mark Dimension Remark
A 102″ Overall length
B 45″ Overall height
C 36″ Diameter
D 36″ Circulation
E 48″ Supports
F 31.69″ Support width
