Design Notes
- Code – ASME Sec IV HLW
- Design Pressure – 125 psi
- Test Pressure – 125 psi
- Interior – Ultonium® Glass Lining with Microban®
- Exterior – Baked Enamel Steel Jacket
- Insulation – 2″ R-12.5 Open Cell Foam
- Supports – 2″ Rails
- Capacity – 175 Gal. / 193 nominal
- Weight – 548 Lbs.
Material Specifications
- Heads – Carbon Steel
- Shell – Carbon Steel
- Couplings -. Carbon Steel
- Flanges -. N/A
- Pipe – N/A
- Manway – N/A
- Jacket – 24 Gauge Steel

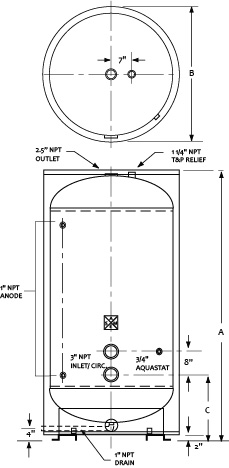

| Mark | Dimension | Remark |
| A | 71″ | Overall height |
| B | 34″ | Diameter |
| C | 19.5″ | Circulation |
