S-72-168

S-72-168

Design Notes

  • Code – ASME Sec IV HLW
  • Design Pressure – 125 psi
  • Test Pressure – 125 psi
  • Interior – Ultonium® Glass Lining with Microban®
  • Exterior – Primed Painted
  • Supports – Skirt
  • Capacity – 2727 Gal. / 2959 nominal
  • Weight – 4110 Lbs.
Material Specifications

  • Heads – Carbon Steel
  • Shell – Carbon Steel
  • Couplings – Carbon Steel
  • Flanges – N/A
  • Pipe – N/A
  • Manway – Carbon Steel

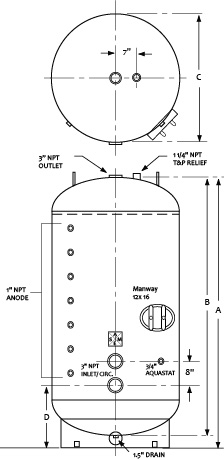

Mark Dimension Remark
A 174″ Overall height
B 168″ Tank height
C 72″ Diameter
D 30″ Circulation
