BH-30-099

BH-30-099

Design Notes

  • Code – ASME Sec IV HLW
  • Design Pressure – 125 psi
  • Test Pressure – 125 psi
  • Interior – Ultonium® Glass Lining with Microban®
  • Exterior – Primed Painted
  • Supports – Saddles
  • Capacity – 280 Gal. / 303 nominal
  • Weight – 508 Lbs.
Material Specifications

  • Heads – Carbon Steel
  • Shell – Carbon Steel
  • Couplings – Carbon Steel
  • Flanges – N/A
  • Pipe – N/A
  • Manway – N/A

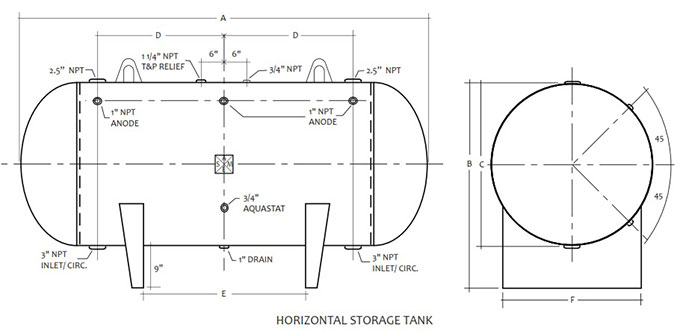

Mark Dimension Remark
A 99″ Overall length
B 39″ Overall height
C 30″ Diameter
D 36″ Circulation
E 48″ Supports
F 26.38″ Support width
