Design Notes

  • Code………………………. ASME Sec IV HLW
  • Design Pressure………… 125 psi
  • Test Pressure……………. 125 psi
  • Interior…………………….. Ultonium Glass Lining
  • Exterior……………………. Primed Painted
  • Supports………………….. Saddles
  • Capacity………………….. 575 Gal./ 630 nominal
  • Weight……………………. 900 Lbs.

Material Specifications

  • Heads…………………… Carbon Steel
  • Shell…………………….. Carbon Steel
  • Couplings………………. Carbon Steel
  • Flanges…………………. N/A
  • Pipe……………………… N/A
  • Manway…………………. Carbon Steel

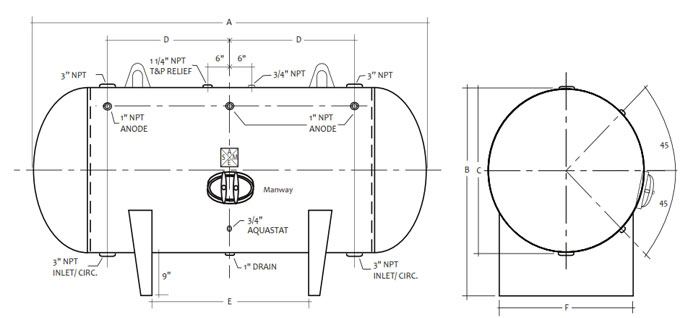

BH-42-105

Mark Dimension Remark
A 105″ Overall length
B 51″ Overall height
C 42″ Diameter
D 36″ Circulation
E 48″ Supports
F 36.75″ Support width
