Design Notes
- Code………………………. ASME Sec IV HLW
- Design Pressure………… 125 psi
- Test Pressure……………. 125 psi
- Interior…………………….. Ultonium Glass Lining
- Exterior……………………. Primed Painted
- Supports………………….. Saddles
- Capacity………………….. 1530 Gal./ 1689 nominal
- Weight……………………. 2829 Lbs.
Material Specifications
- Heads…………………… Carbon Steel
- Shell…………………….. Carbon Steel
- Couplings………………. Carbon Steel
- Flanges…………………. N/A
- Pipe……………………… N/A
- Manway…………………. Carbon Steel

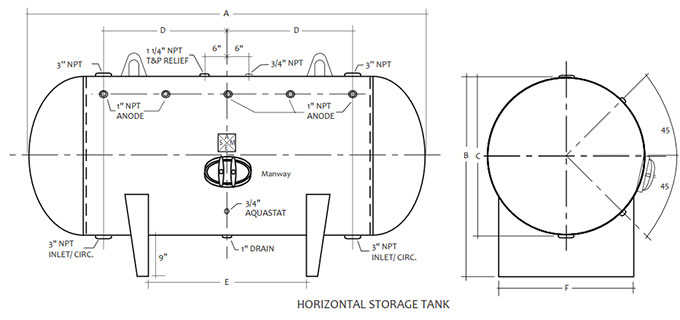

| Mark | Dimension | Remark |
| A | 138″ | Overall length |
| B | 69″ | Overall height |
| C | 60″ | Diameter |
| D | 48″ | Circulation |
| E | 69.5″ | Supports |
| F | 52.5″ | Support width |
