Spray-on Insulation with Topcoat

Spray-on Rigid Polyurethane Foam with Acrylic Topcoat

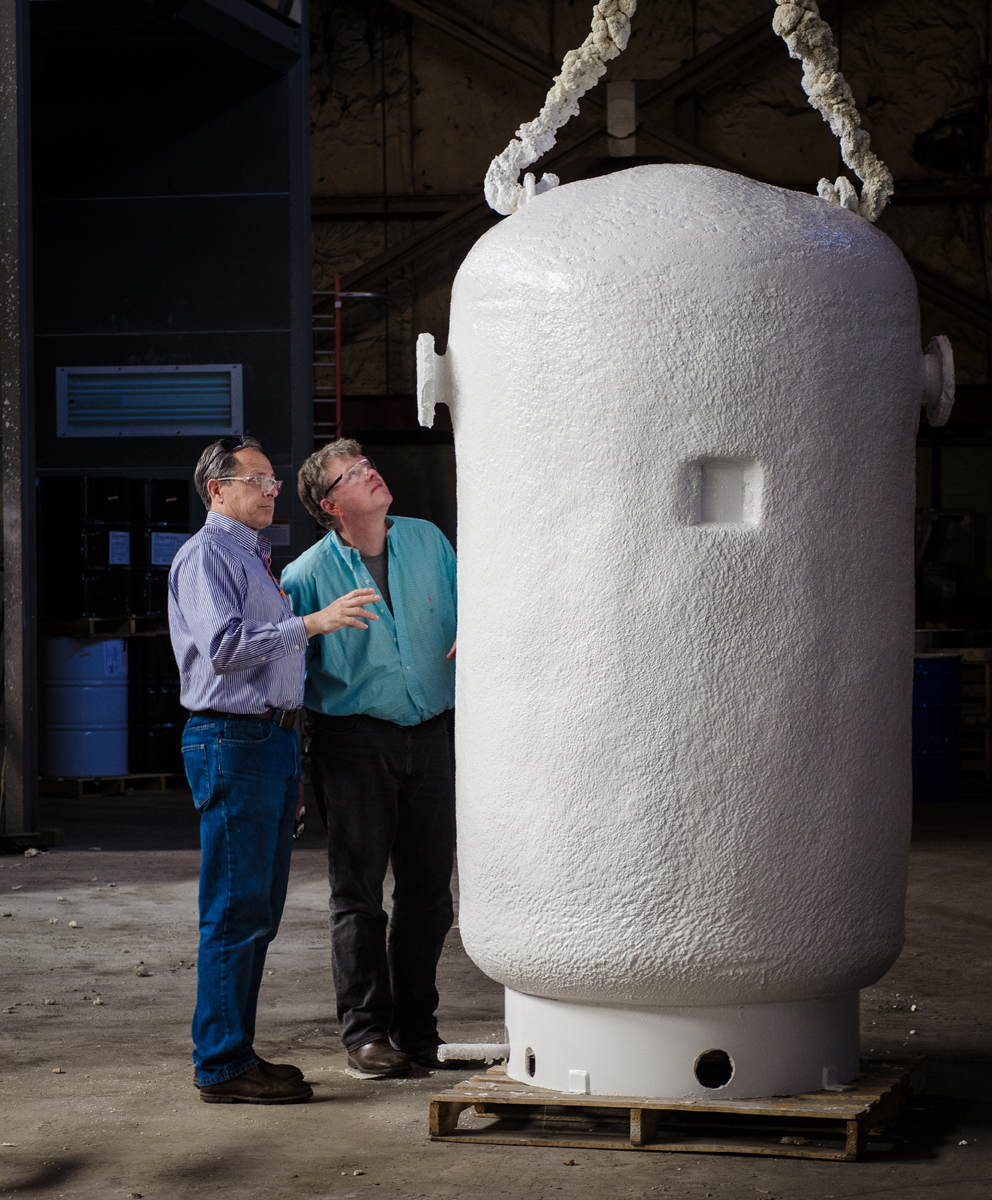

Niles Steel Tanks sprayed-on rigid insulation with acrylic topcoat exceeds ASHREE 90.1b requirements with 2.25” of high density polyurethane foam with an R value or R-16. The spray-on foam meets requirements in California Title 24. Niles spray-on foam insulation has the best re spread rating with a class 1 foam with less than a 25-ame spread rating suitable for boiler room applications. The 100% acrylic topcoat is formulated for outdoor applications and is designed to withstand extreme weather and a full range of environmental conditions. The 2 component polyurethane foam is applied at ambient temperatures, directly to the vessel and rises to the desired thickness. The acrylic topcoat is applied from a high pressure gun once the foam has set. The acrylic topcoat is UV reective which protects the spray-on from deterioration from the sun.

Spray-on Polyurethane Foam
Specific Gravity: 1.17 – 1.19
Viscosity: 800 – 1300
Density: @ 2″ 2.10 – 2.35 @ 4″ 1.88 – 1.99
Closed Cell Content: >90%
K-Factor, Initial: 0.155 – 0.170
Permeance: 2.91 (perms) 2.99 (perm inch)
Dimensional Stability: +3.3 to 8.2 – Dry age 28 days (158 Degree F) -0.37 to -0.96 Freeze 14 day (-20F)
Flame Spread: 25 – ASTM – 84
Smoke Development: 450
R-Value: 7.2/ Inch
Max. Thickness 4″
Topcoat: 1 coat white, 12 mils thick
Texture: Smooth
Grade: Spray-on or Rolled
Base: 100% Acrylic
Solids by Weight: 66% (+/-3%)
Solids by Volume: 55% (+/- 3%)
Weight per Gallon: 11.65 lbs. (+/- .2)
Tensile Strength: 300 psi (+/- 25)
Elongation: 260% (+/-25)
Durometer Hardness: 62 Shore A (+/-2)
Tear Resistence: 85 lbs/ in.
Permeance: 11 U.S. Perms @ 20 mils
Viscosity: 110 K.U. (+/-8)
Codes/ Approvals: Energy Star, ICC, UL, ASTM D6083
Reectivity: New 85%, Aged 78%
Emmisivity: .89
