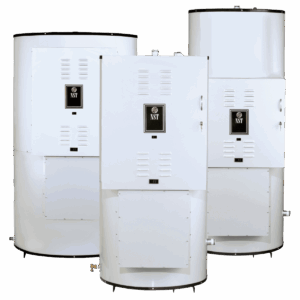

Large Volume Electric Power Water Heaters

Right Spec Sizing Program

JEV Family tight



12″ x 16″ Manway (250 gallons and larger)

Standard Features Optional Features
150 PSI BMS Contacts
Ultonium Glass Lined Low Water Cut-off
Incoloy Heating Elements Pilot Lights and Manual Limiting Switches
Internal Fusing (above 120 amps) Electric Step Controller (36kW & higher)
Painted Steel Jacket Alarm Bell
Magnesium Anode Rods Shunt Trip Disconnect*
Immersion Thermostats Low Pressure Switch
Magnetic Contactors High Pressure Switch
Manual Reset High Limit Time Clock (7 Day)
Digital Temperature Display Time Clock (24 Hour)
Hinged Door with Keyed Lock Safety Door Interlock
ASME Temperature and Pressure Relief Valve Channel Iron Skid Base
Lifting Lug access T&P Gauge
Approved for 180 degrees F (82.2 degrees C) Operation Power Anodes
12″ x 16″ Manway (250 gallons and larger)
Double Ultonium Glass lining – 6YR Warranty

*Separate Mounting

Energy-Saving Performance – High-density closed cell foam insulation is used to meet the demanding ASHRAE 90.1b current standard for minimizing heat loss.  This requirement, allowing a maximum 4 watts per square foot of tank surface energy loss, offers big savings and operating efficiency.

Magnetic Contactors with Immersion Thermostats – 120 volt control circuit with built in transformer.  Elements are thermostatically controlled in 54kW (max) increments.

Low Watt Density Incoloy Elements – Incoloy elements are used by Niles Steel Tank because of their many superior characteristics to copper-sheathed elements in rigorous water heating applications. This tough alloy successfully resists the effects of prolonged high operating temperatures, hard water, acids, corrosion and thermal shock. Their nominally higher initial cost is more than off-set by much longer life expediencies and reduced service and replacement costs. Incoloy elements are designed to “burn in air” to prevent failures caused by water void.

Internal Fusing – All elements and circuits are fused in 48 amp increments, providing complete electrical protection. Cartridge type fuses are rated at 200,000 ampere interrupting capacity.

Glass-Lined Tank – Ultonium glass is applied to the inside surface of the steel tank and fired to 1600 F. (All models are constructed in accordance with the ASME code and approved for 150 psi working pressure).

Magnesium Anode Protection – Provides anodic protection against corrosion of the tank due to electrolysis.

Painted Jacket – The painted steel jacket is coated on both sides and beautifully finished in durable finish. This combines attractive appearance with maximum protection.

Hinged Door with Key Lock – Quality requires full length hinged doors for ease of inspection and maintenance. Keyed door lock provides additional safety and security at no charge.

Digital Temperature Display – Easy to read digital temperature display.

Temperature and Pressure Relief Valve – Factory provided ASME rated relief valve protects against excessive temperature and/ or pressure buildup within the tank.

Terminal Block Connections – Easy and safe wiring connections are made possible by factory installed terminal blocks.

Power Heater Drawing


Model Number Gal. Max kW A
Floor to Top of Heater
B
Jacket Dia.
C
Floor to Cold Water Inlet
D
Depth
E
Back of Heater to Hot Water Outlet
Water Connection Approx Ship Weight
JEV150-*(kW) 150 90 67 1/2″ 32″ 7 3/4″ 38 3/4″ 16″ 1 1/2″ 650
JEV200-*(kW) 200 162 80″ 32″ 7 3/4″ 38 3/4″ 17″ 1 1/2″ 750
JEV250-*(kW) 250 162 92″ 34″ 19 1/2″ 40 3/4″ 17″ 1 1/2″ 1165
JEV300-*(kW) 300 162 80″ 40″ 21″ 40 3/4″ 20″ 2″ 1350
JEV400-*(kW) 400 162 80″ 46″ 22 1/2″ 52 3/4″ 23″ 2″ 1590
JEV500-*(kW) 500 162 92″ 46″ 22 1/2″ 52 3/4″ 23″ 2″ 1700
JEV600-*(kW) 600 216 92″ 52″ 24 1/2″ 58 3/4″ 26″ 2 1/2″ 2010
JEV800-*(kW) 800 270 104″ 52″ 24 1/2″ 58 3/4″ 26″ 2 1/2″ 2450
JEV1000-*(kW) 1000 360 128″ 52″ 24 1/2″ 58 3/4″ 26″ 2 1/2″ 3160
JEV1250-*(kW) 1250 360 133″ 58″ 26″ 64 3/4″ 29″ 3″ 3792
JEV1500-*(kW) 1500 360 129″ 64″ 27 1/2″ 70 3/4″ 32″ 3″ 4550
JEV2000-*(kW) 2000 360 140″ 70″ 29 1/2″ 76 3/4″ 35″ 3″ 5460
JEV2500-*(kW) 2500 360 144″ 76″ 30 1/2″ 82 3/4″ 38″ 3″ 6553
