SEP-30-075

SEP-30-075

Design Notes

  • Code – ASME Code Sec VIII Div 1
  • Design Pressure – 125 psi
  • Test Pressure – 163 psi
  • Interior – NA
  • Exterior – Primed Painted
  • Supports – 4″ Skirt
  • Capacity – 210 Gal.
  • Weight – 500 Lbs.

Material Specifications

  • Heads – Carbon Steel
  • Shell – Carbon Steel
  • Couplings – Carbon Steel
  • Flanges – N/A
  • Pipe – N/A
  • Manway – N/A

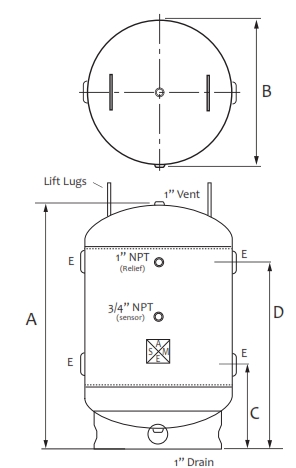

Mark Dimension Remark
A 79″ Overall height
B 30″ Diameter
C 16.75″ Inlet/ Outlet
D 67.25″ Inlet/ Outlet
E 3″ NPT Circulation

The Niles Steel Tank Hydraulic Separators are designed for 125 psi (150 optional). Standard sizes range from 120 gallon up to 860 actual gallons. Custom sizes and additional fittings are available.
