Design Notes

  • Code……………………….. ASME Code Sec VIII Div 1
  • Design Pressure…………. 125 psi
  • Test Pressure…………….. 163 psi
  • Interior………………………NA
  • Exterior……………………..Primed Painted
  • Supports………………….. 4″ Skirt
  • Capacity………………….. 120 Gal.
  • Weight…………………….. 310 Lbs.

Material Specifications

  • Heads…………………… Carbon Steel
  • Shell…………………….. Carbon Steel
  • Couplings………………. Carbon Steel
  • Flanges…………………. N/A
  • Pipe……………………… N/A
  • Manway………………… N/A

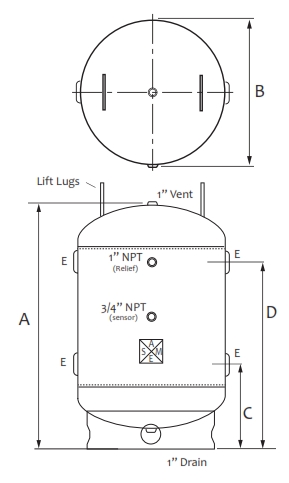

Mark Dimension Remark
A 49″ Overall height
B 30″ Diameter
C 16.75″ Depth
D 36.25″ Feed
E 3″ NPT Circulation

SEP-30-045_001

The Niles Steel Tank Hydraulic Separators are designed for 125 psi (150 optional). Standard sizes range from 40 gallon up to 860 actual gallons. Custom sizes and additional fittings are available.
