Design Notes

  • Code……………………….. ASME Code Sec VIII Div 1
  • Design Pressure………….. 125 psi
  • Test Pressure…………….. 163 psi
  • Interior………………………NA
  • Exterior……………………..Primed Painted
  • Supports………………….. 4″ Skirt
  • Capacity…………………… 860 Gal.
  • Weight…………………….. 1925 Lbs.

Material Specifications

  • Heads…………………… Carbon Steel
  • Shell…………………….. Carbon Steel
  • Couplings………………. Carbon Steel
  • Flanges………………… N/A
  • Pipe…………………….. N/A
  • Manway………………… N/A

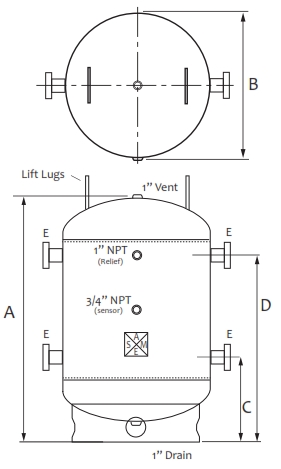

Mark Dimension Remark
A 124″ Overall height
B 48″ Diameter
C 29″ Inlet/ Outlet
D 99″ Inlet/ Outlet
E 6″ Flg. Circulation

SEP-36-072

The Niles Steel Tank Hydraulic Separators are designed for 125 psi (150 optional). Standard sizes range from 40 gallon up to 860 actual gallons. Custom sizes and additional fittings are available.
