Design Notes
- Code………………………. ASME Sec IV HLW
- Design Pressure………… 150 psi
- Test Pressure……………. 150 psi
- Interior…………………….. Ultonium Glass Lining
- Exterior……………………. Baked Enamel Steel Jacket
- Insulation…………………. 2″ R-12.5 Open Cell Foam
- Supports………………….. Sits on Shell
- Capacity………………….. 200 Gal.
- Weight……………………. 541 Lbs.
Material Specifications
- Heads…………………… Carbon Steel
- Shell…………………….. Carbon Steel
- Couplings………………. Carbon Steel
- Flanges…………………. N/A
- Pipe……………………… N/A
- Hand Hole…………………. 4″ x 6″
- Jacket…………………… 24 Gauge Steel
Please note: No modifications can be made to this tank

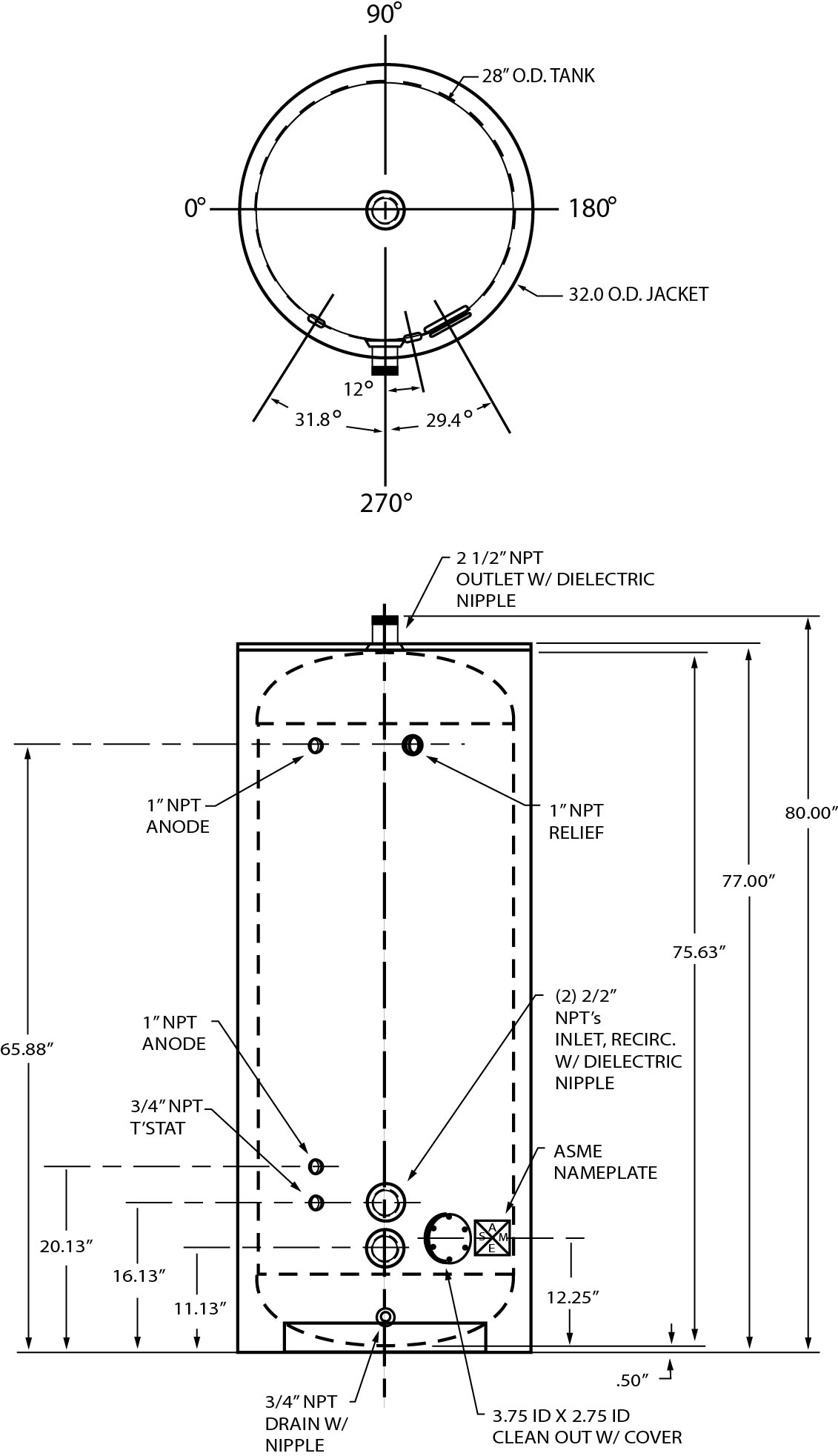

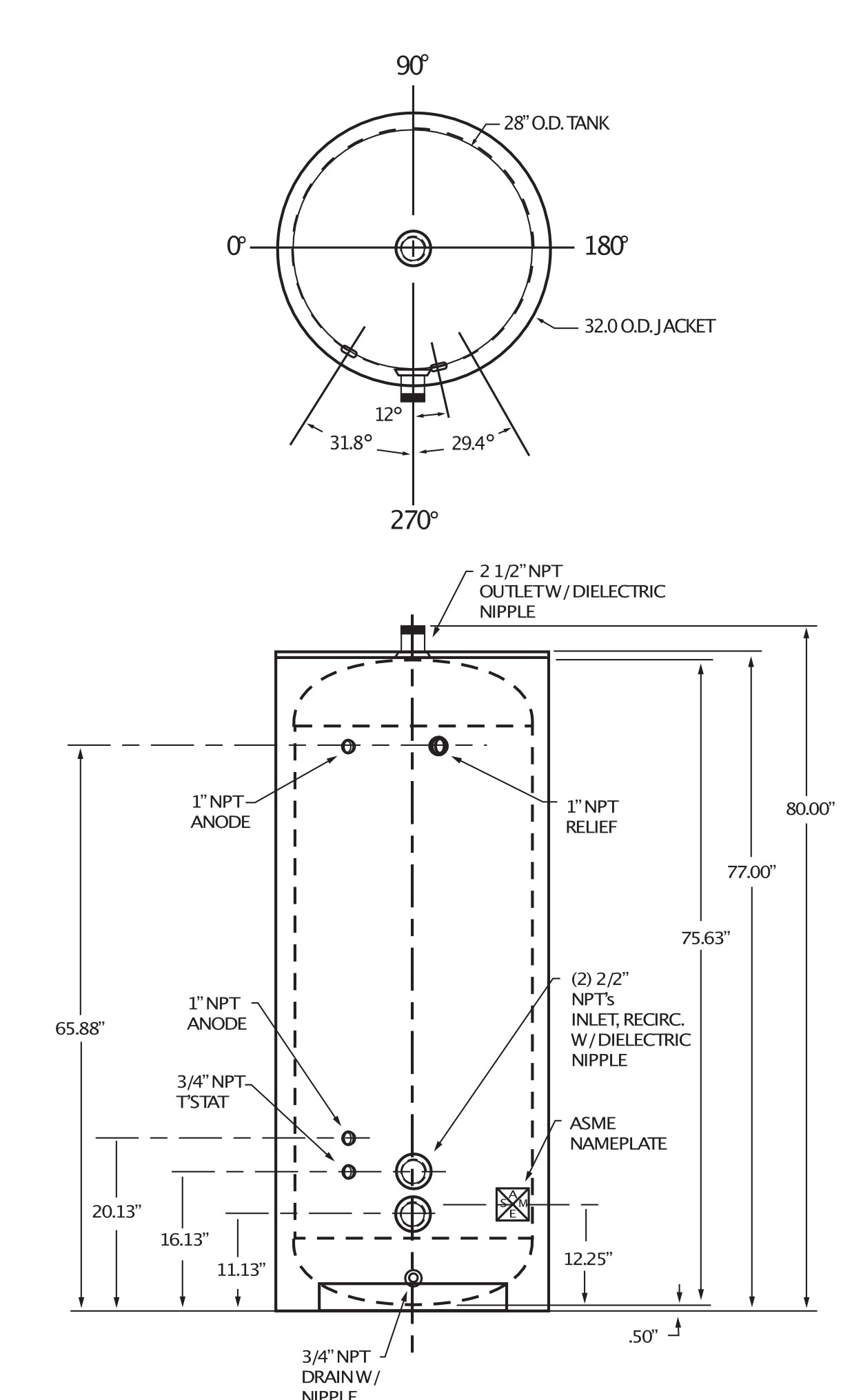

| Mark | Dimension | Remark |
| A | 78″ | Overall height |
| B | 77″ | Top of Jacket |
| C | 32″ | Diameter |
| D | 66″ | T&P to Floor |
| E | 16 1/4″ | Circulation |
| F | 11 1/4″ | Circulation |
