Design Notes

  • Code………………………. ASME Sec IV HLW
  • Design Pressure………… 150 psi
  • Test Pressure……………. 150 psi
  • Interior…………………….. Ultonium Glass Lining
  • Exterior……………………. Baked Enamel Steel Jacket
  • Insulation…………………. 2″ R-12.5 Open Cell Foam
  • Supports………………….. Sits on Shell
  • Capacity………………….. 119 Gal.
  • Weight……………………. 225 Lbs.

Material Specifications

  • Heads…………………… Carbon Steel
  • Shell…………………….. Carbon Steel
  • Couplings………………. Carbon Steel
  • Flanges…………………. N/A
  • Pipe……………………… N/A
  • Manway…………………. N/A
  • Jacket…………………… 24 Gauge Steel

Please note: No modifications can be made to this tank

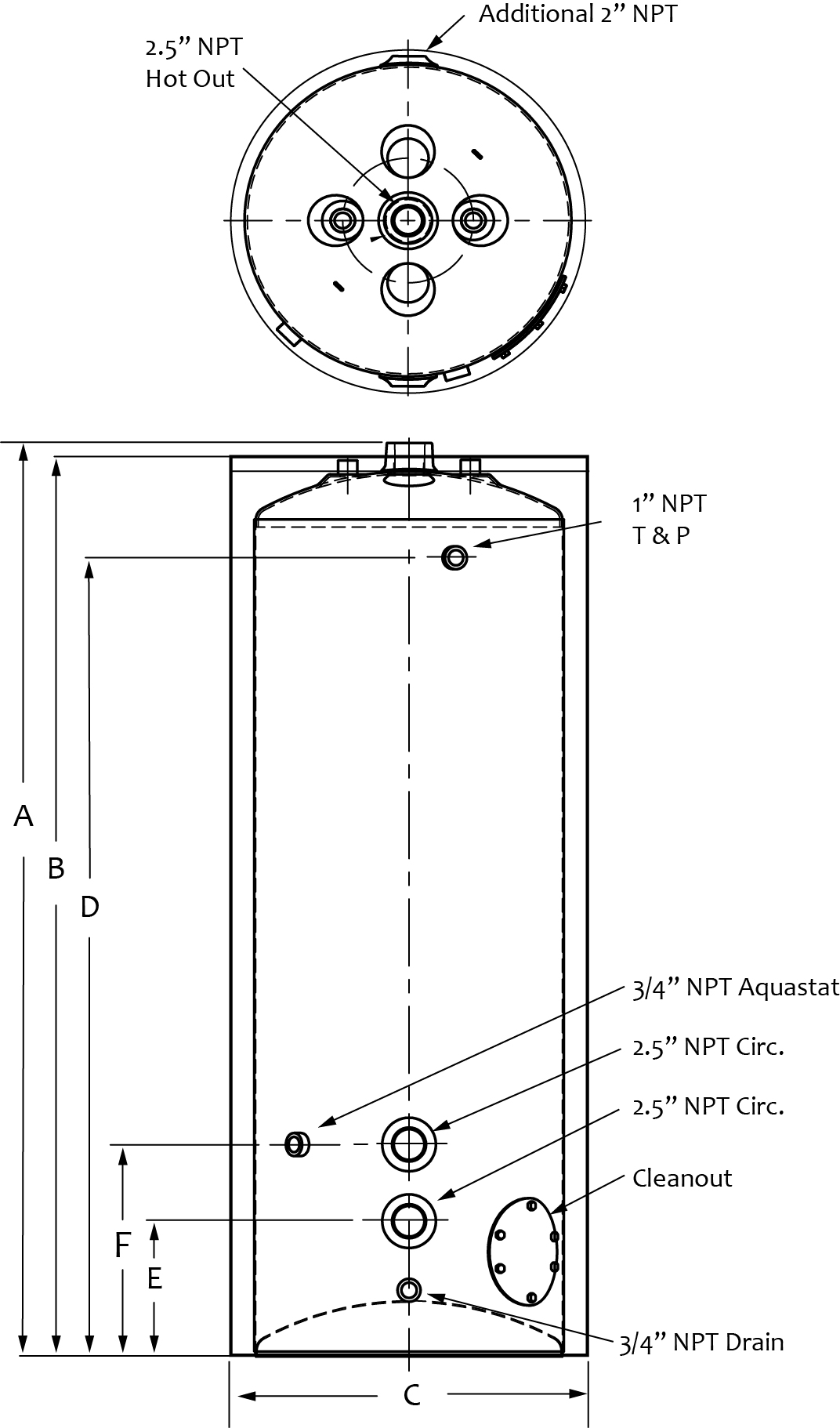

Mark Dimension Remark
A 63 1/2″ Overall height
B 62 1/2″ Top of Jacket
C 28″ Diameter
D 55 3/4″ T&P to Floor
E 9 1/4″ Circulation
F 14 1/4″ Circulation
