Design Notes

  • Code………………………. Non-Code
  • Design Pressure………… 150 psi
  • Test Pressure……………. 150 psi
  • Interior…………………….. Ultonium Glass Lining
  • Exterior……………………. Baked Enamel Steel Jacket
  • Insulation…………………. 2″ R-12.5 Open Cell Foam
  • Supports………………….. Sits on Shell
  • Capacity………………….. 40 Gal.
  • Weight……………………. 103 Lbs.

Material Specifications

  • Heads…………………… Carbon Steel
  • Shell…………………….. Carbon Steel
  • Couplings………………. Carbon Steel
  • Flanges…………………. N/A
  • Pipe……………………… N/A
  • Manway…………………. N/A
  • Jacket…………………… 24 Gauge Steel

Please note: No modifications can be made to this tank

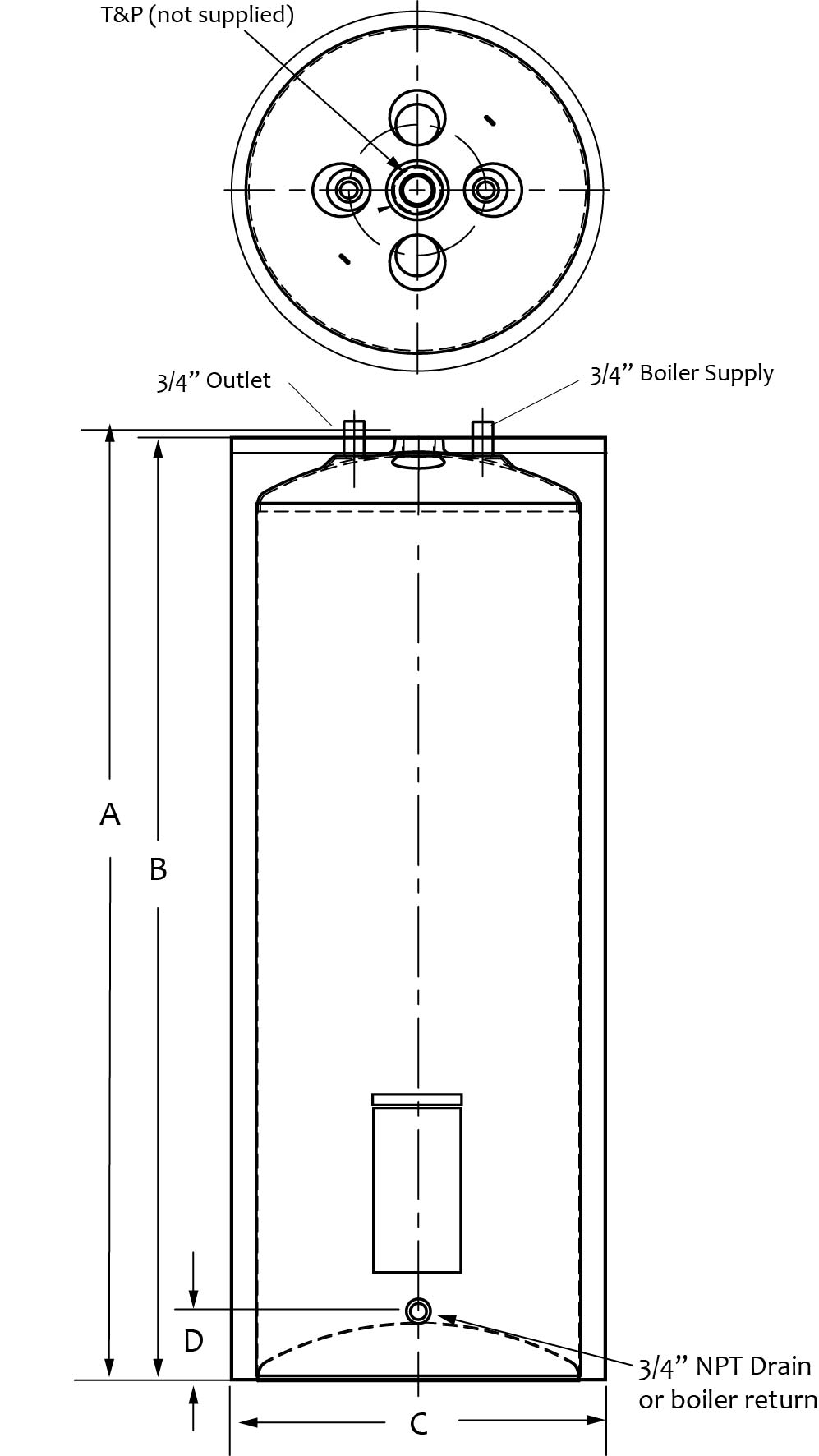

Mark Dimension Remark
A 47 7/8″ Overall height
B 46 5/16″ Top of Jacket
C 22″ Diameter
D 3 1/16″ Drain
